EXE Rise and EXE Ace chain hoists - D8 Plus rated, 350 to 2500 kg, stocked and supported Australia wide by TSA
Rated to lift above people.
The EXE Rise range runs from 350 to 2500 kg, D8 Plus rated at an 8:1 safety factor with double brakes. Alongside the Rise range, the EXE Ace 500 kg is the budget option for installs where nothing hangs over people. Specified, stocked and supported by the team that services them.
Spec your hoist
before you call.
Answer five quick questions. The Hoist Selector matches the load, lift height and options to your rig, then turns it into a PDF spec routed straight to our rigging team.
Spec hoists, drapes and venues with all our configuration tools →
Engineered for the
load path over people.
An EXE chain hoist is a fixed-speed electric chain hoist built for entertainment rigging, not the warehouse. The EXE Rise range runs from 350 to 2500 kg WLL and is classified D8 Plus: an 8:1 minimum safety factor with double brakes as standard, the rating you need to statically suspend a load above people - the load moves with the area clear, then holds overhead. The EXE Ace 500 kg is the D8 alternative for installs and positioning, where the load is not flown over an audience, performers or crew.

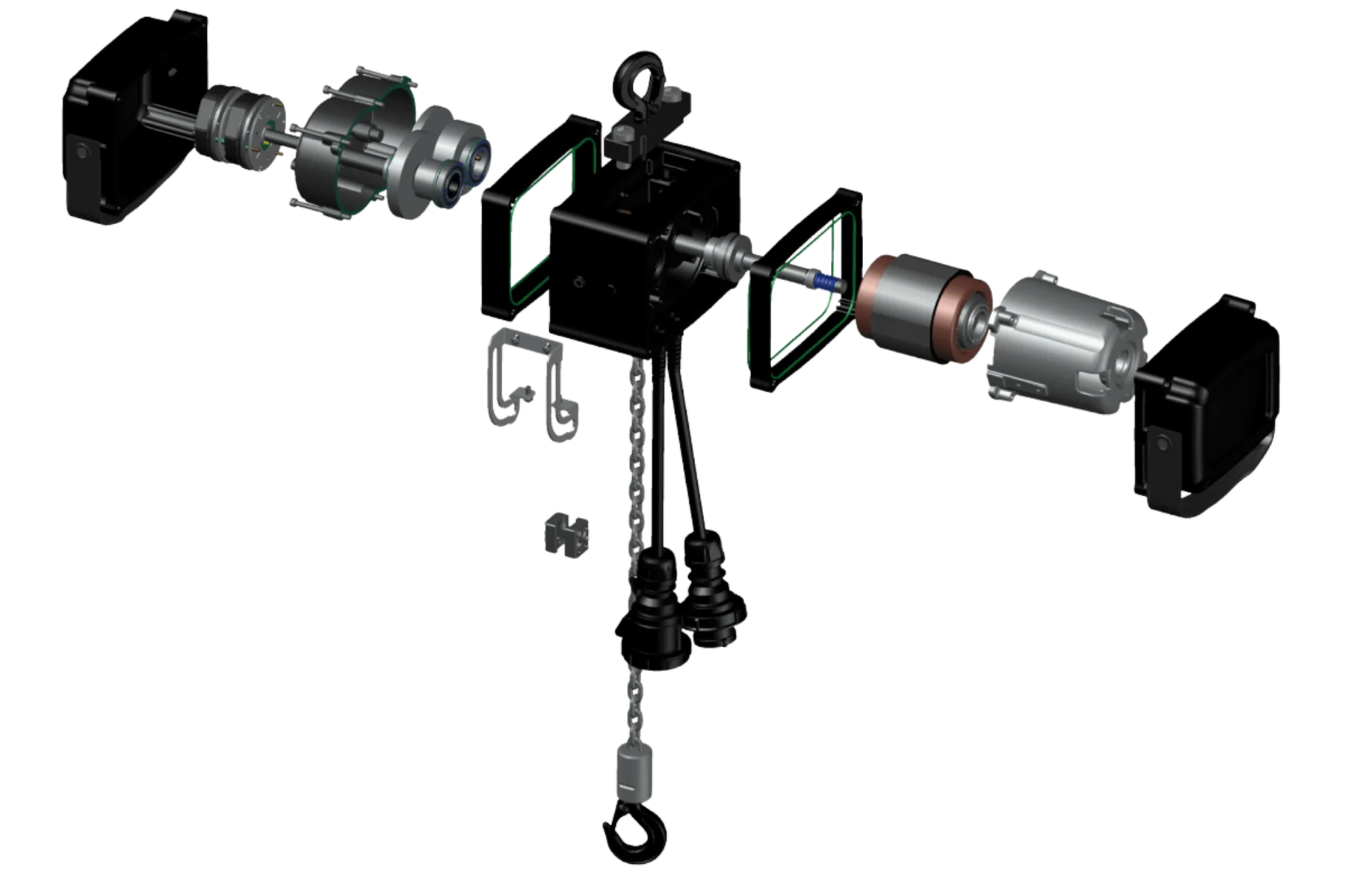

Standard industrial chain hoists are rated to D8 - a 4:1 safety factor that is fine for general lifting. D8 Plus doubles that to 8:1 as a minimum, with the overload clutch sitting outside the load path so a clutch fault never reaches the brakes. The body is cast in Italy and the load chain is Grade 80, made in Germany by RUD. The enclosure is IP66 rated, the range runs at 4 m/min, and full-load noise sits at 67.5 dB(A). It is one part of the full Lifting & Rigging range.
Four jobs, one range.
Pick the rating,
not the compromise.
Five EXE Rise models from 350 to 2500 kg, all D8 Plus at 8:1 with double brakes and IP66. Plus the EXE Ace 500 kg, the D8 budget install hoist. Here is how they differ, and how to spec the one your rig needs.
Every Rise model shares the same engineering: 8:1 safety factor, double brake, IP66, 4 m/min, Grade 80 RUD chain and low-voltage control. The Ace runs a single brake at 5:1 - not rated over people. Single-phase (230 V) Rise is available at 500 kg.
Entertainment-grade safety, compact.
The compact end of the range at 21.5 kg, D8 Plus rated with a double brake and an 8:1 safety factor. The fit for small venues, community theatres, drama studios, touring rig points and workshop lifting, where the load is light but the rating still has to be right.
The workhorse for venues and touring.
The model most rigs reach for: 500 kg WLL at 24 kg, D8 Plus with a double brake and IP66. Sized for mid-size venues, house rigging and touring productions with standard truss loads. Also available single-phase (230 V) with an inverter soft-start where a site has no 3-phase power.
Heavy lifting, same safety standard.

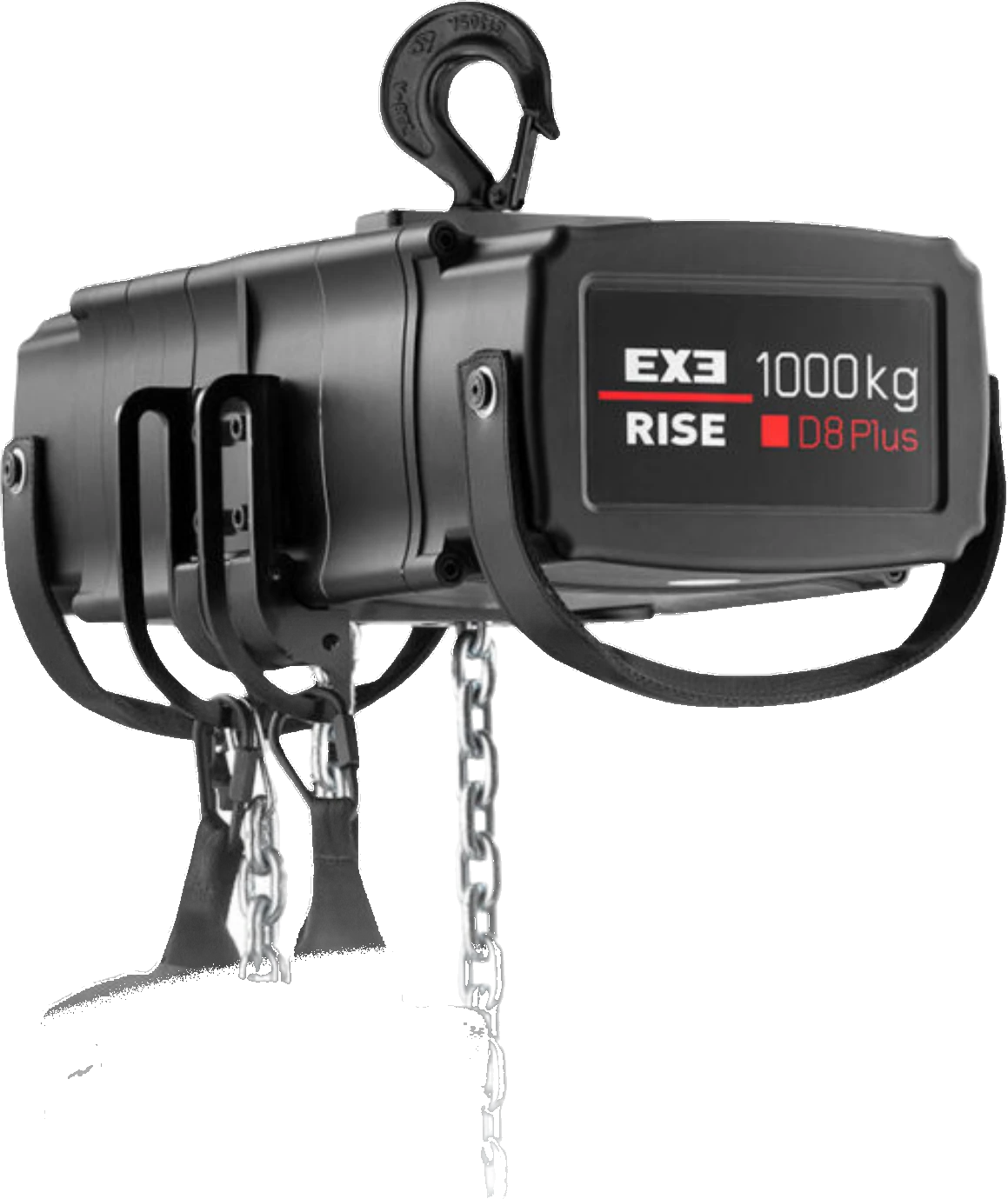

A tonne on the hook at 43 kg, with the same D8 Plus double-brake engineering as the compact models. Built for major venues, automation systems, heavier scenic elements and arena touring, where the load steps up but nothing about the safety case does.
Serious lift for automation and scenic.
Two tonnes on a single hoist, with a higher 50% duty cycle for the work that runs all day. The pick for heavy automation, large scenic moves and multi-hoist synchronised lifts on major productions. A double-reeve configuration is available where headroom is tight.
Top of the range, same safety standard.
The heaviest hoist in the range, 2500 kg WLL on a 13 x 36 mm Grade 80 chain, and still D8 Plus at 8:1 with a double brake. Built for the biggest rigs: line arrays, LED walls, scoreboards and large festival builds. Specifications provisional pending final confirmation.
The budget install hoist.
A cost-effective D8 hoist for budget installs and event lifts: single brake, 5:1 safety factor, lower duty cycle. Use it to position loads into place over weeks or months, not to fly loads over people. Where anything hangs above an audience, performers or crew, specify the EXE Rise instead.
Not rated over people. Use the EXE Ace for installs and positioning loads into place, not for flying over an audience, performers or crew. Ace specifications are provisional pending confirmation.
Not sure which model your rig needs? Run the Hoist Selector, or tell us the load, the lift height, the power on site and how the hoist will be used, and we will spec it. Hoists pair with the Atlas controller range and the full rigging line.
EXE Ace and single-phase EXE Rise specifications are provisional, encoded from the EXE V24 catalogue and pending final confirmation. We confirm every spec on quote.
EXE on the
load path.
Specified, supplied, installed and serviced by one team. The crew that quotes the hoist is the crew that rigs it and comes back to service it.
See all projects

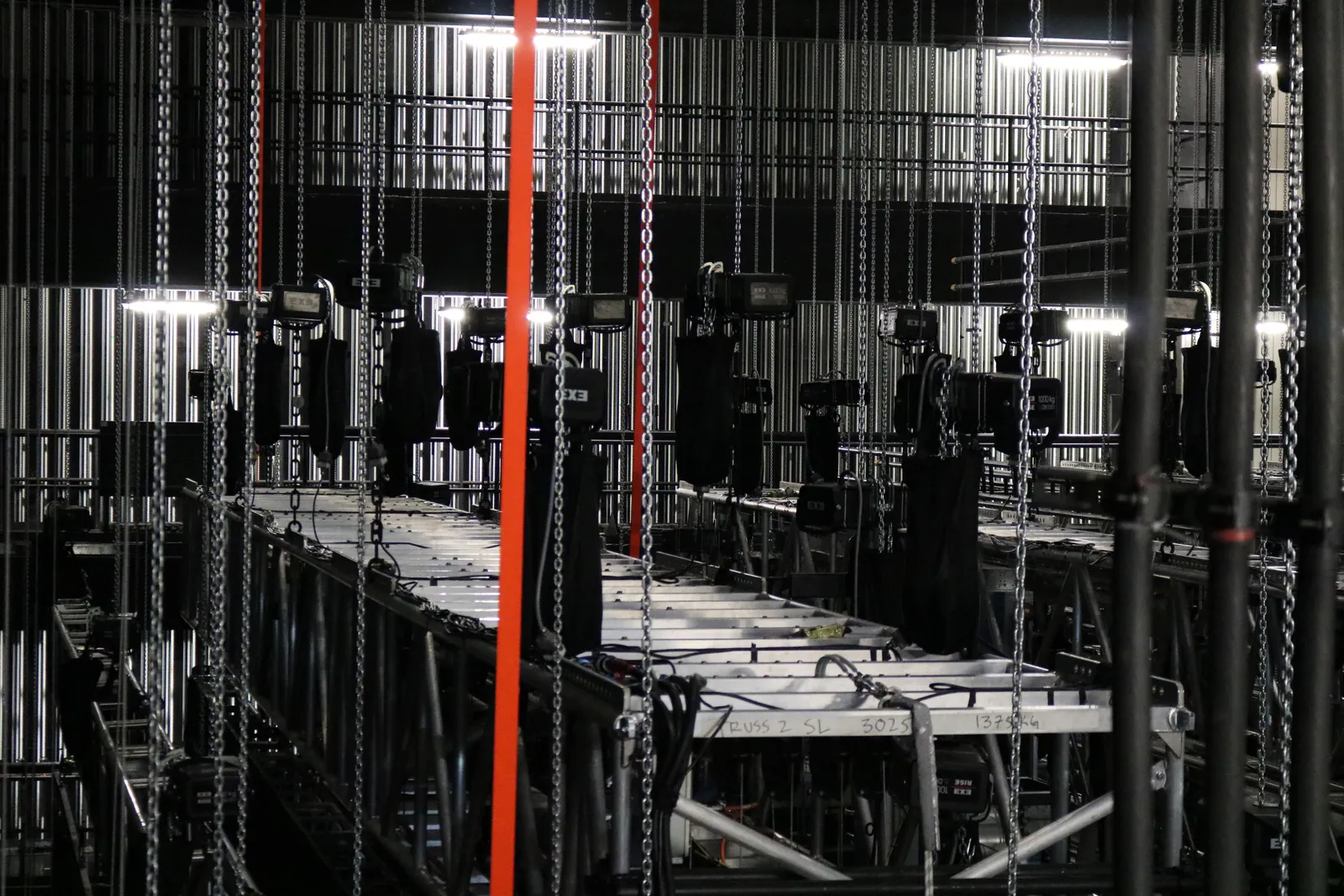

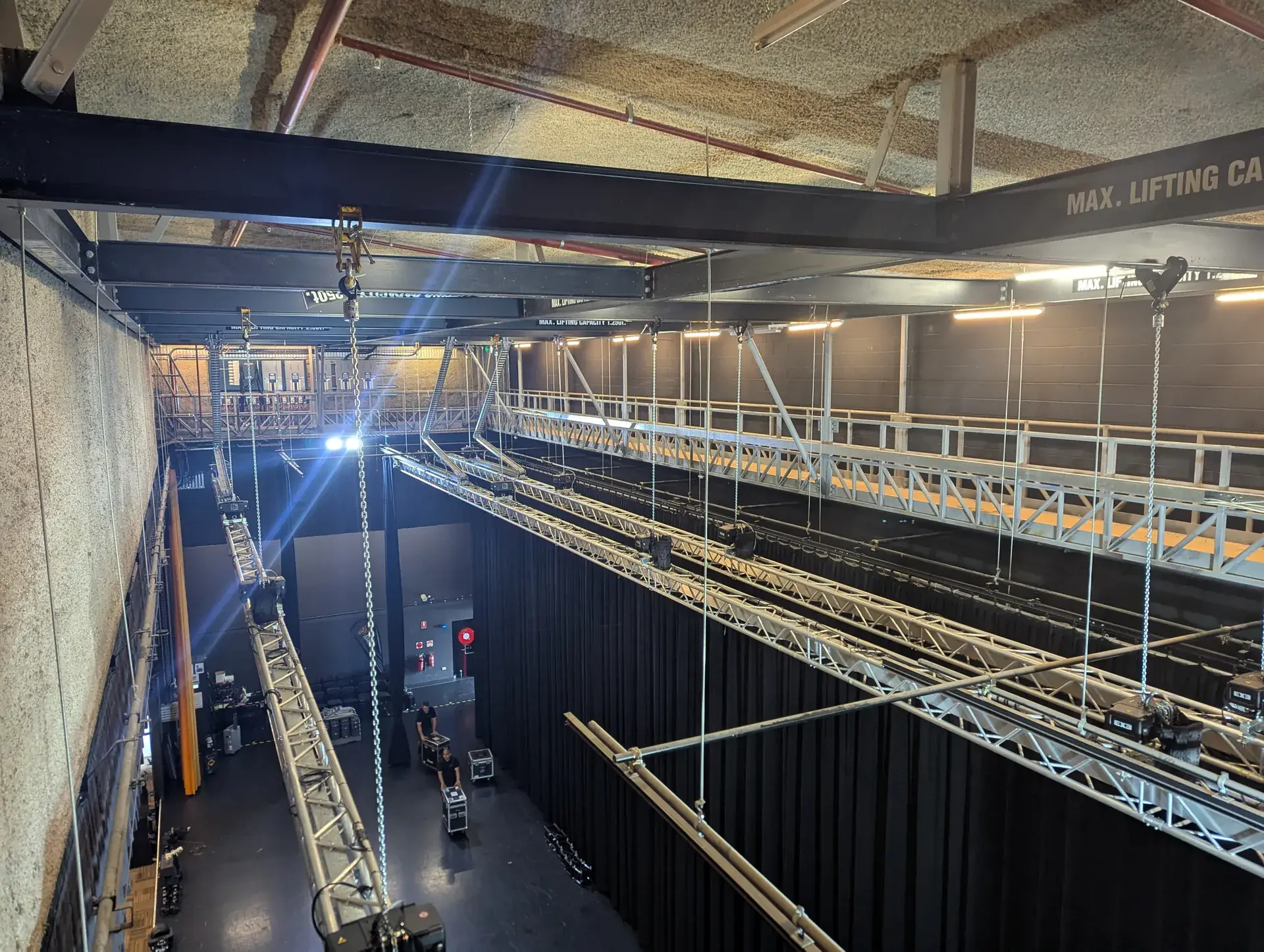

A grid that opens the season.
Dead-hung and motorised points specified to the fly plan, rated over the stalls, with the load-cert paperwork to match.
Explore theatres

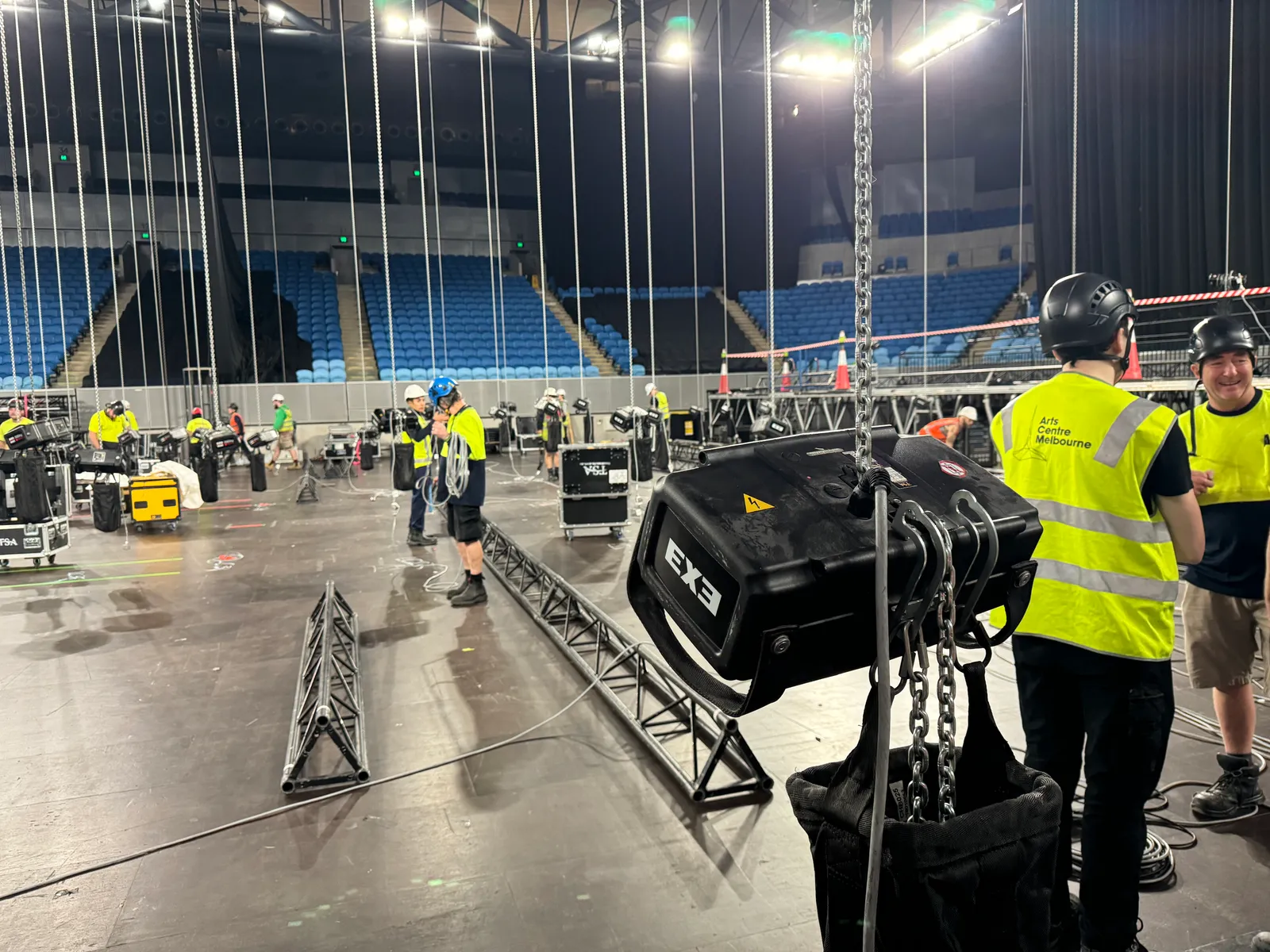

Eight cities, one rig.

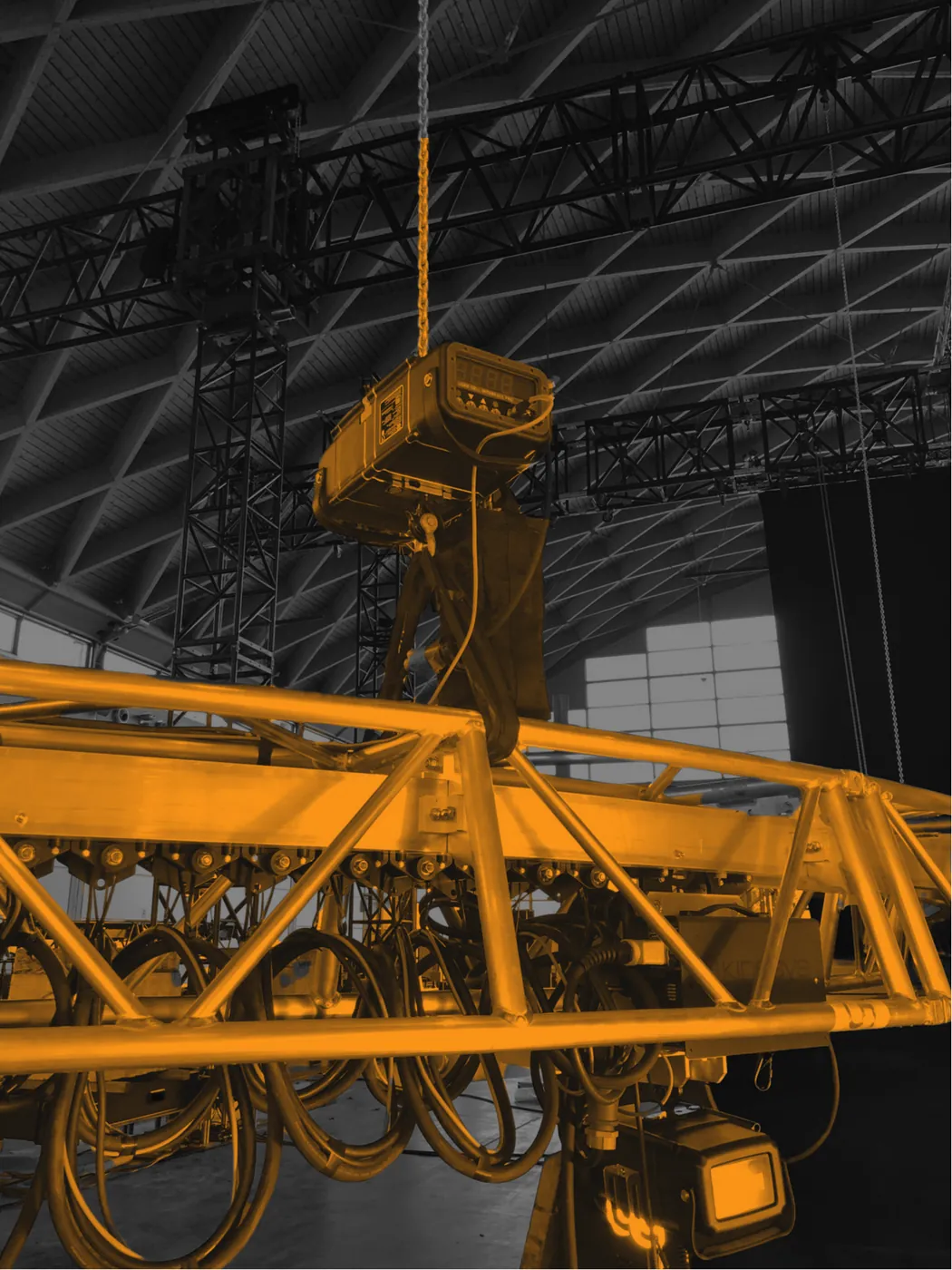

IP66 hoists in road cases, certified between dates, supported on the road when a show week needs an answer.
Explore touring

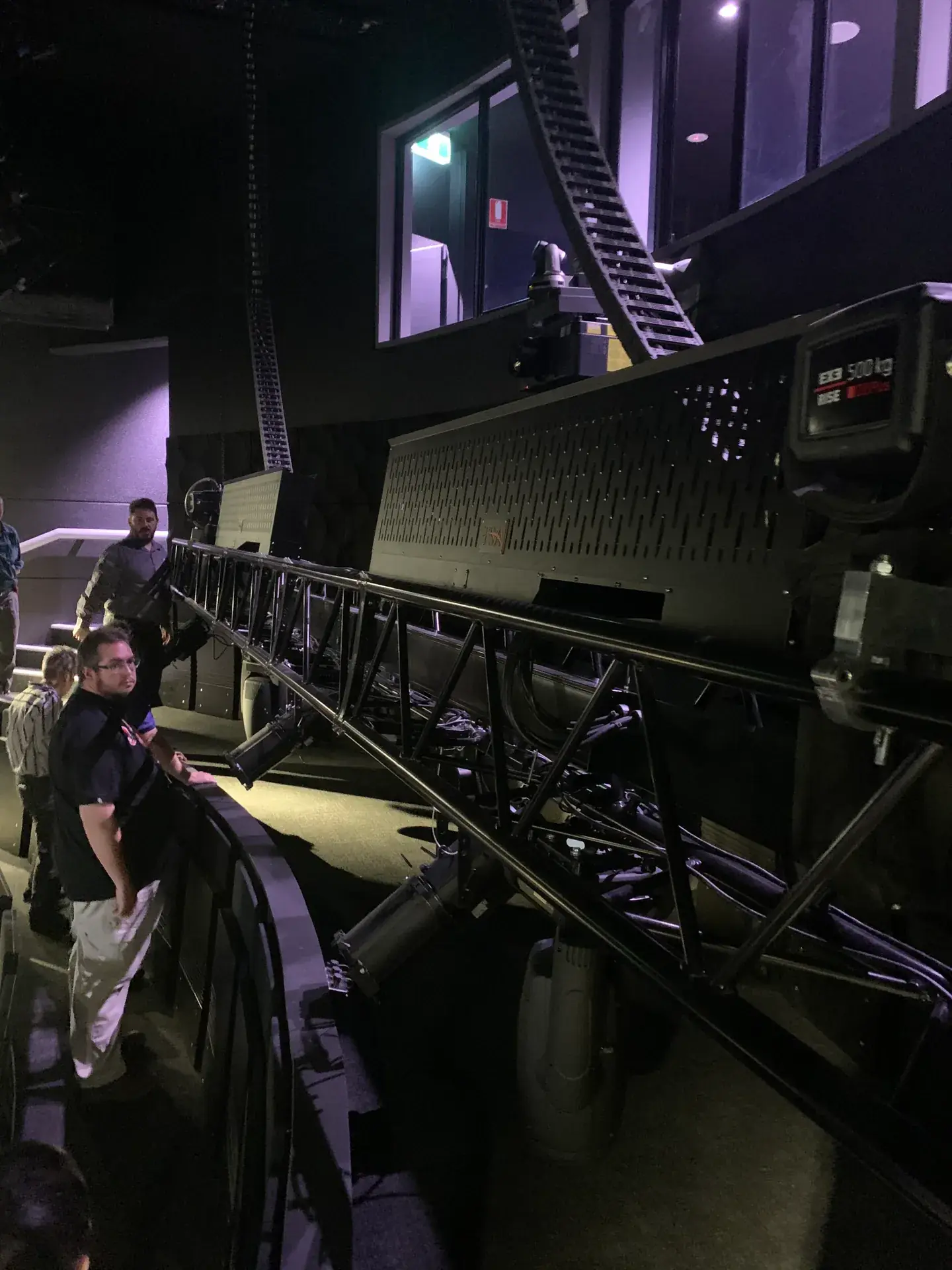

A hall a teacher can run.
Right-sized points and budget Ace install hoists, term-break installed, with operator handover that survives staff turnover.
Explore schoolsThe EXE docset,
in your inbox.
Questions
about EXE hoists.
If your question isn't here, call us or send your rig detail - we'll come back with the right answer for your venue.
Call 1300 439 872 →Tell us about
your rig.
Send the load, the lift height, the power on site and how the hoist will be used. We will spec the right EXE hoist, supply it, and support it - here and on the road. Or run the Hoist Selector to narrow it yourself first.
